RUBBER PLATE

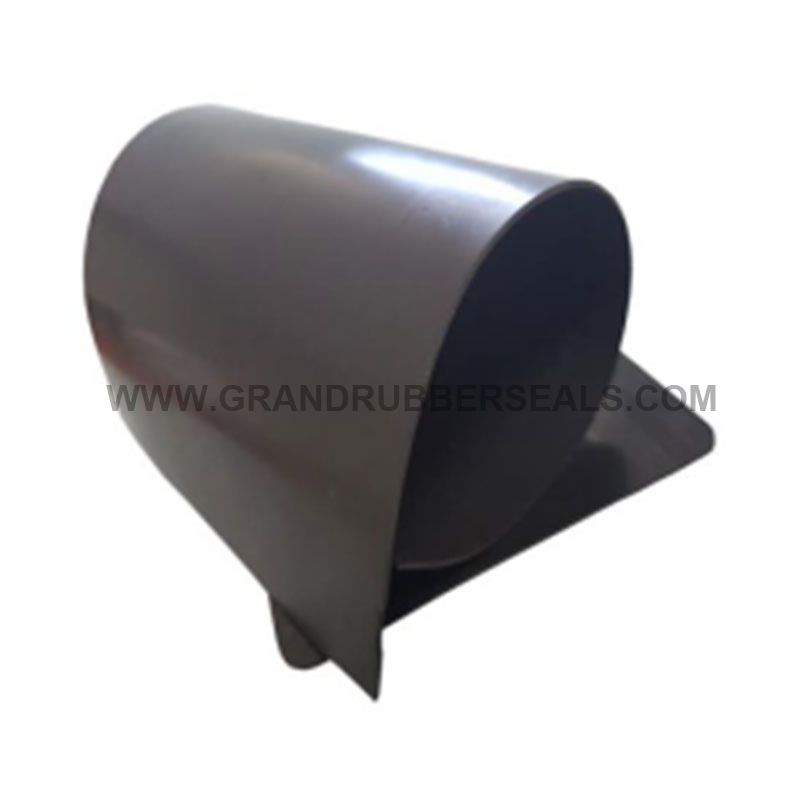

Butyl Rubber Sheet

Permeability to air ,ozone and heat resistance, anti-aging and chemical,shock absorption,electric insulation

Product Details

Features:

Permeability to air ,ozone and heat resistance, anti-aging and chemical,shock absorption,electric insulation

It can be used for corrosion resistant linings.

Thickness	Width	Length
1-100mm	10mm--3000mm	1-50m

Properties Quality	Hardness ShoreA	Density g/cm3	Tensile strength MPA	Elongation %	Temperature range （℃）
BUTYL RUBBER SHEET	70±5	1.5	5.0	250	-35~+120
BUTYL RUBBER SHEET	60±5	1.4	6.0	300	-35~+120
BUTYL RUBBER SHEET	50±5	1.3	7.0	350	-35~+120

Properties

Quality

Hardness
ShoreA

Density
g/cm3

Tensile strength
MPA

Elongation
%

Temperature range
（℃）

BUTYL RUBBER SHEET

70±5

1.5

5.0

250

-35~+120

BUTYL RUBBER SHEET

60±5

1.4

6.0

300

-35~+120

BUTYL RUBBER SHEET

50±5

1.3

7.0

350

-35~+120

All the colors available.

Cloth insertion、nylon insertion available.

Cloth impression finish available.

Specification and dimention on the customer’s request.
